IROZ Motorsport Dual Brushless Low Pressure Fuel Pump Kit

Fitment: All 2022-2026 Audi RS3 (8Y) DAZA DNWA Engines

Syvecs Tuning Required

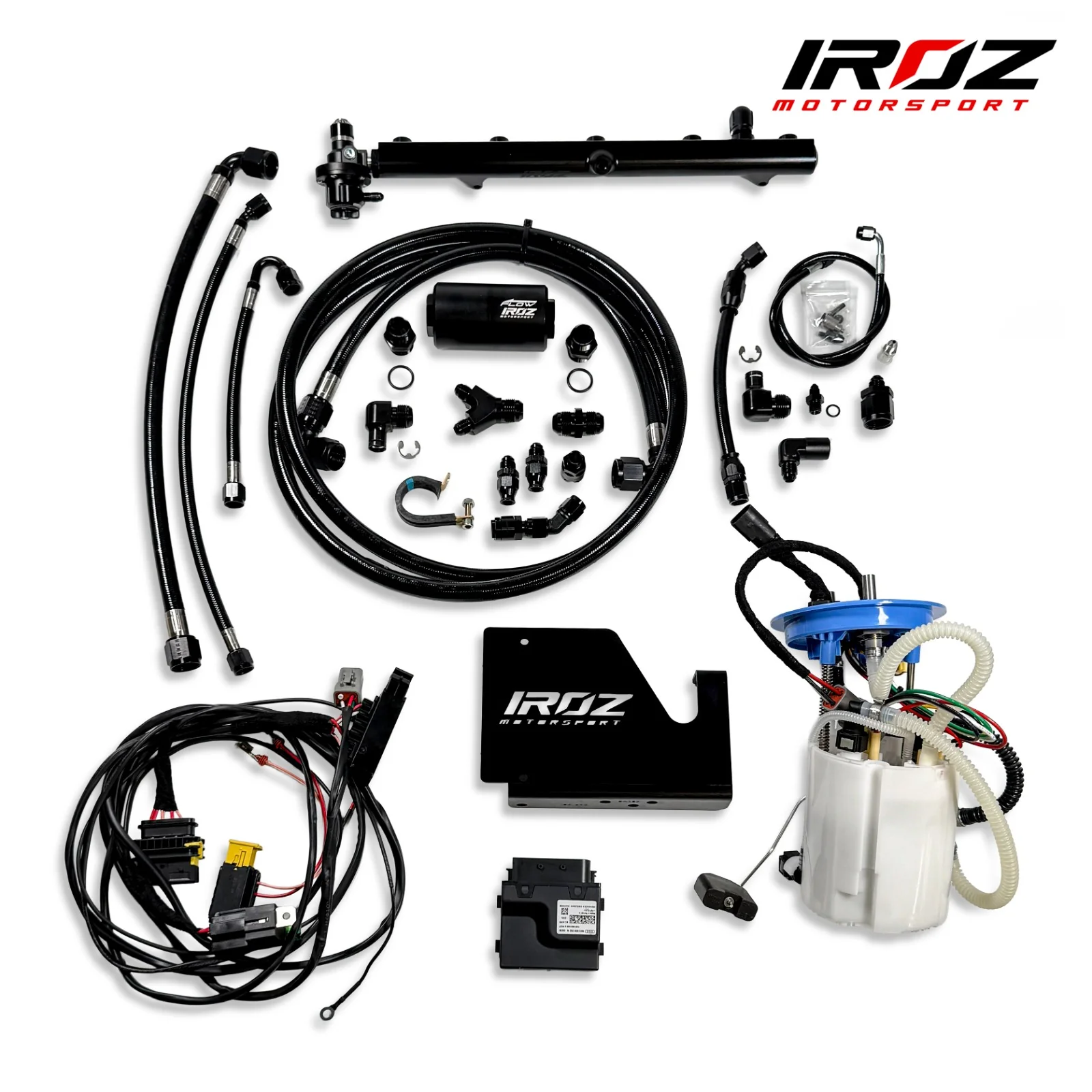

A Complete IROZ Upgraded Dual LPFP System, with a External Fuel Pressure Regulator and Return Line.

This is Dual Brushless Pump design safely supports ethanol based fuels up to approximately 1200whp

Includes:
- New Basket Outfitted with Dual Brushless Fuel Pumps

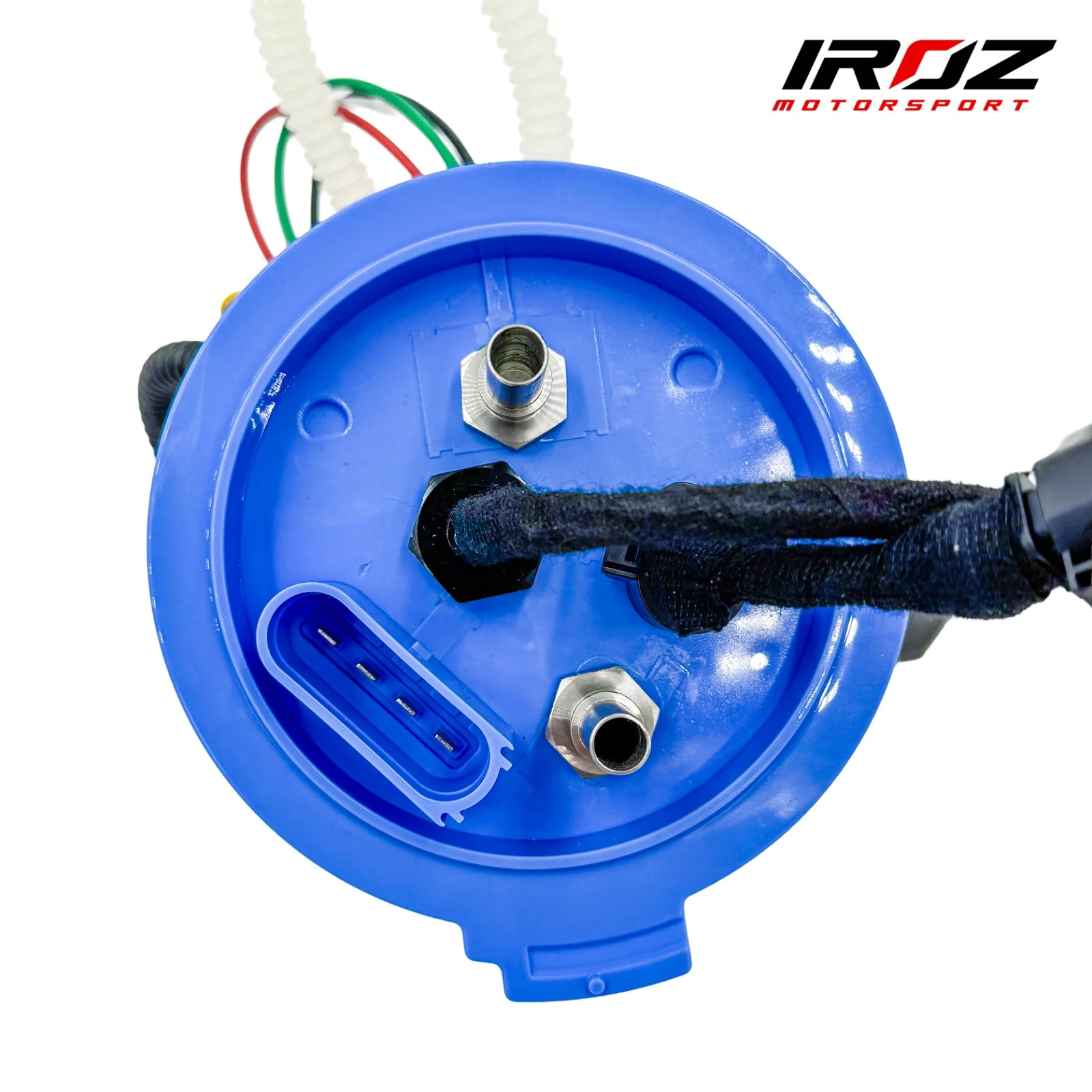

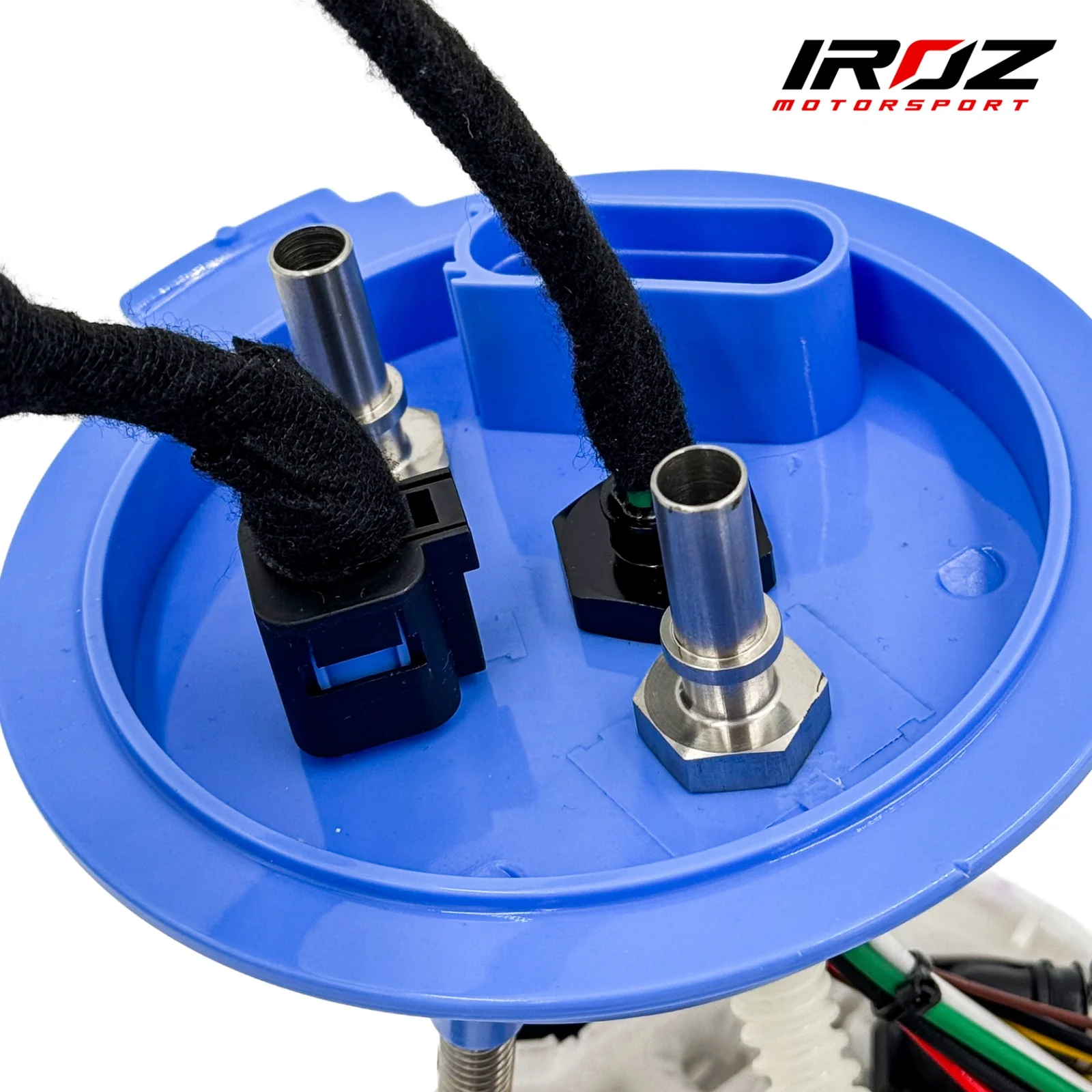

- Basket Lid Conversion For Fuel Return

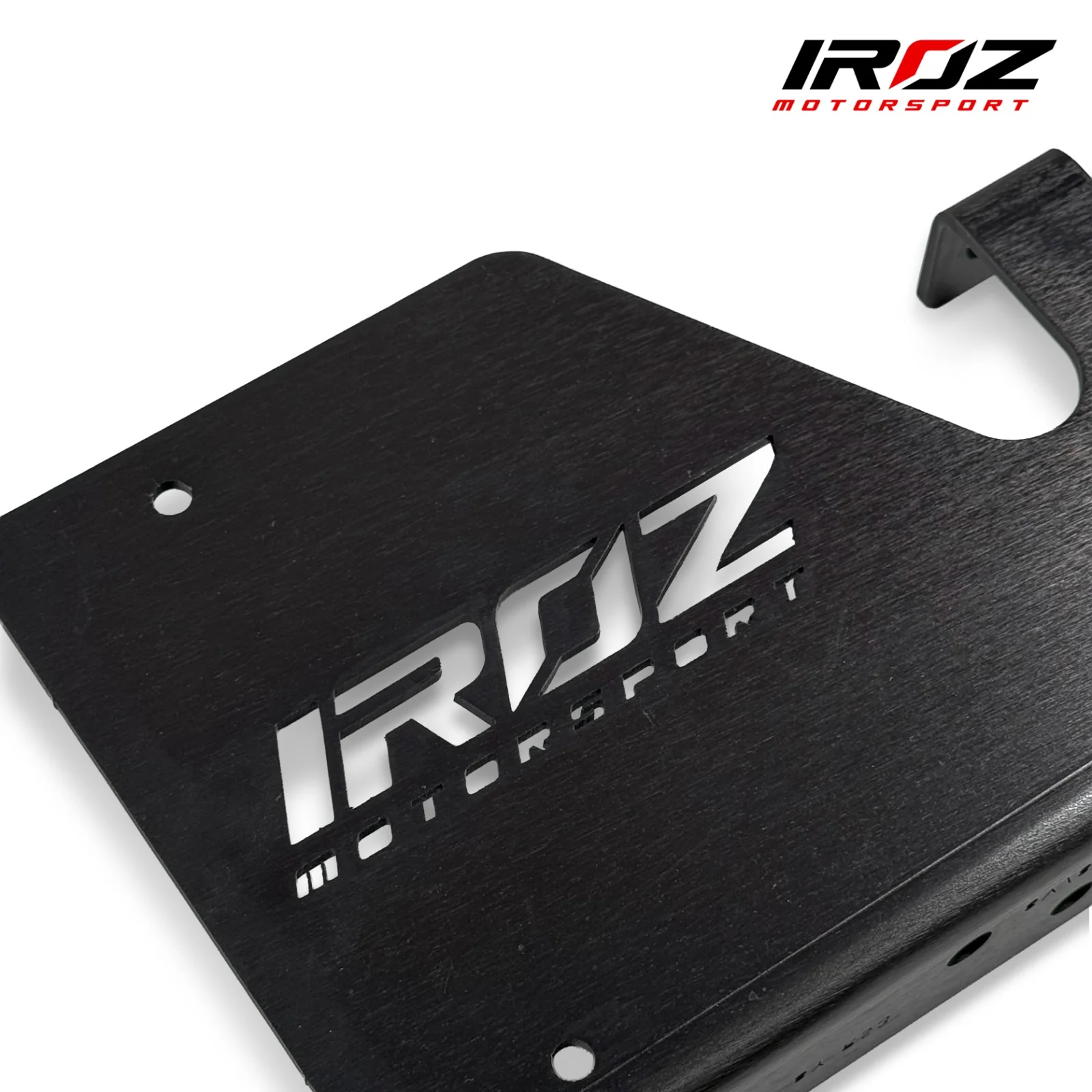

- Dual Pump / Return Style Specific Fuel Line Kit w/ Filter and Bracket

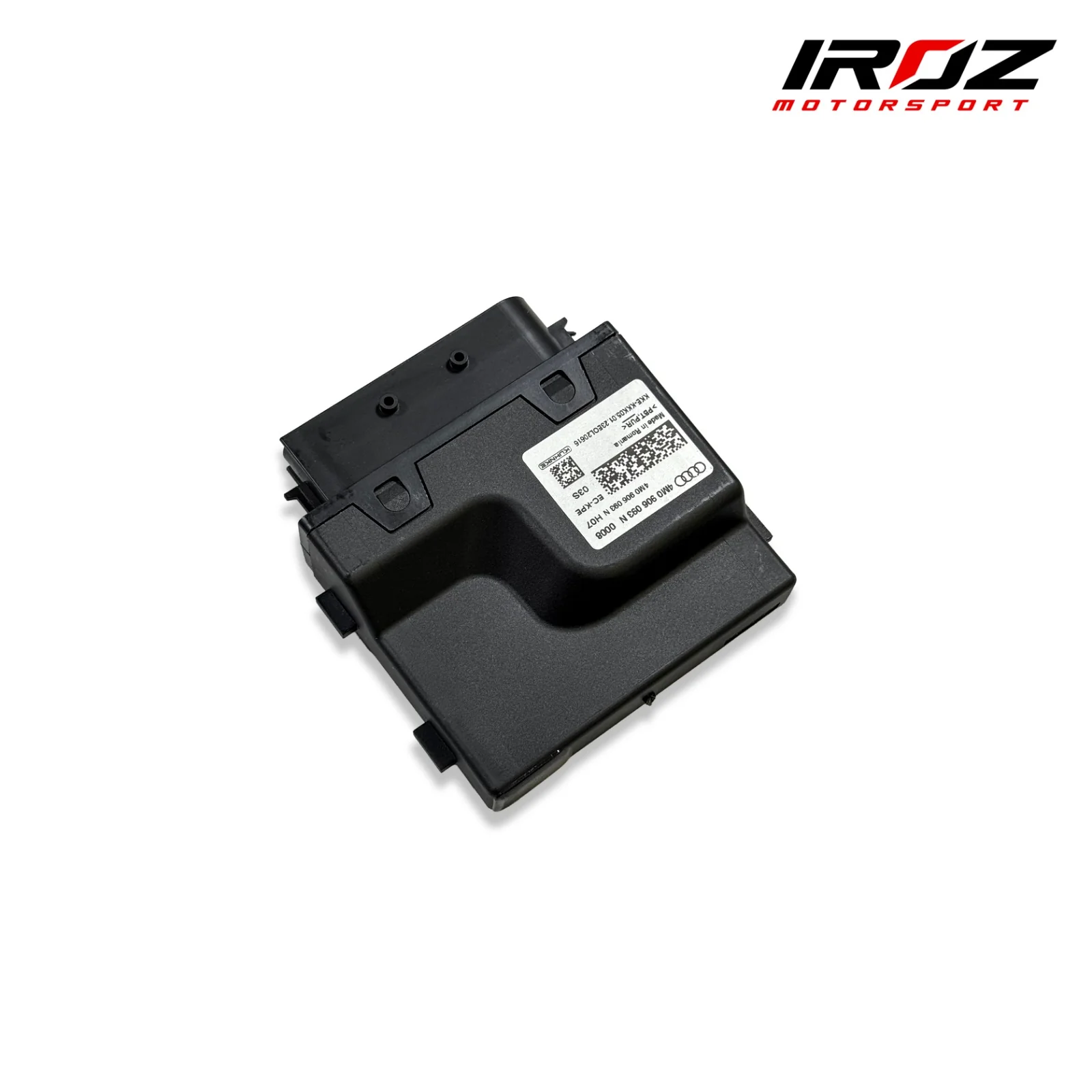

- Two New OEM Audi Fuel Pump Controller w/ Bracket (replaces factory and a additional)

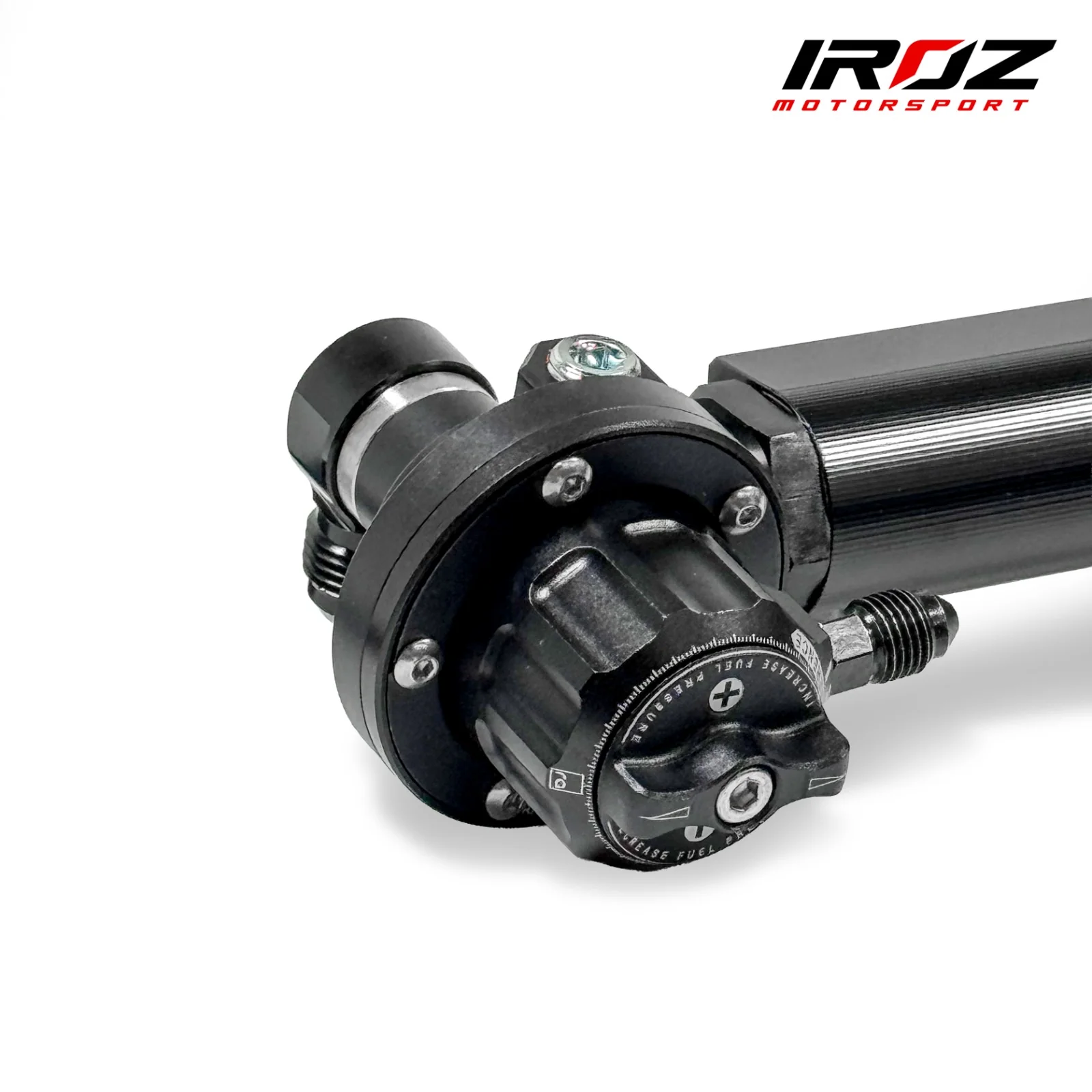

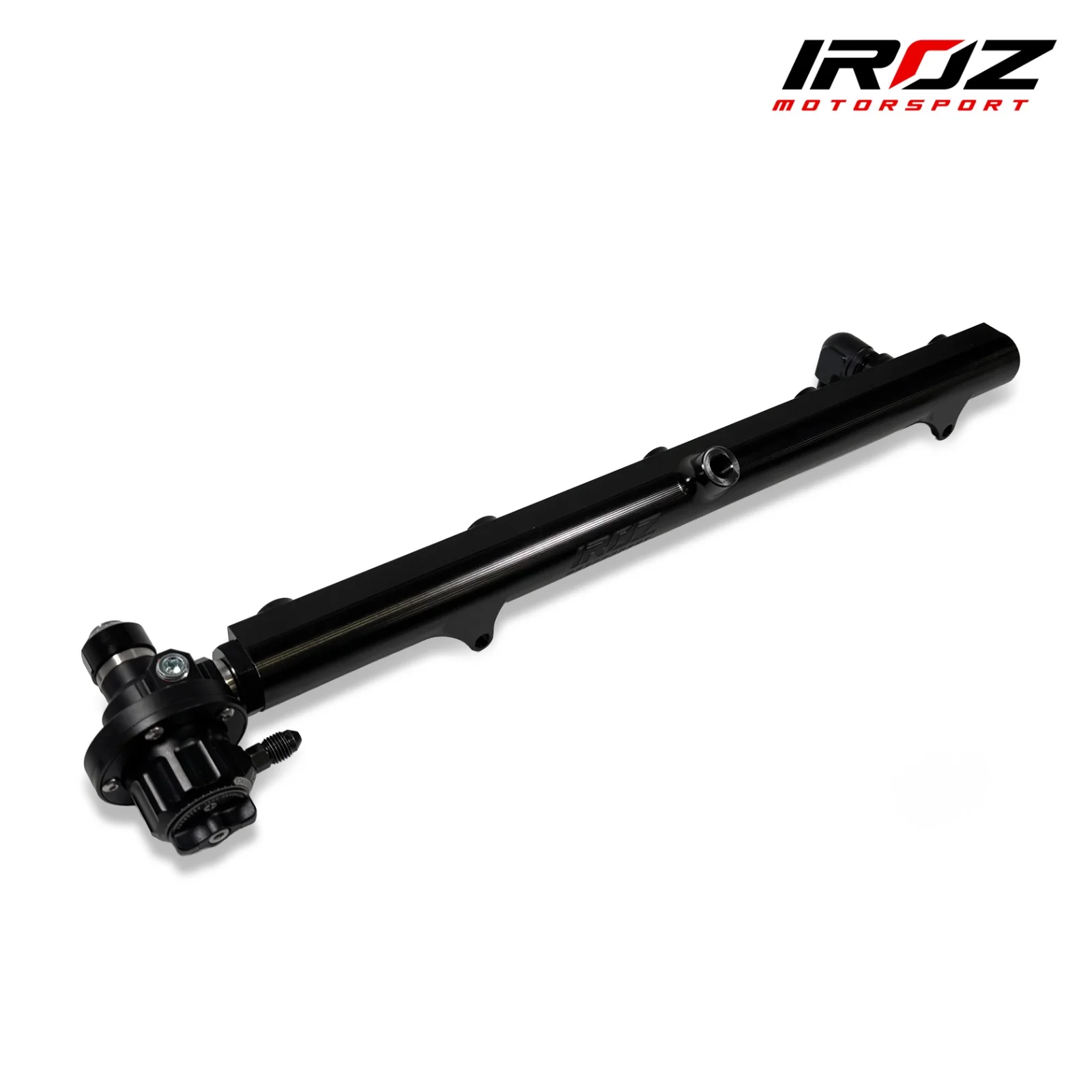

- IROZ Motorsport Fuel Rail and Radium Adjustable Fuel Pressure Regulator

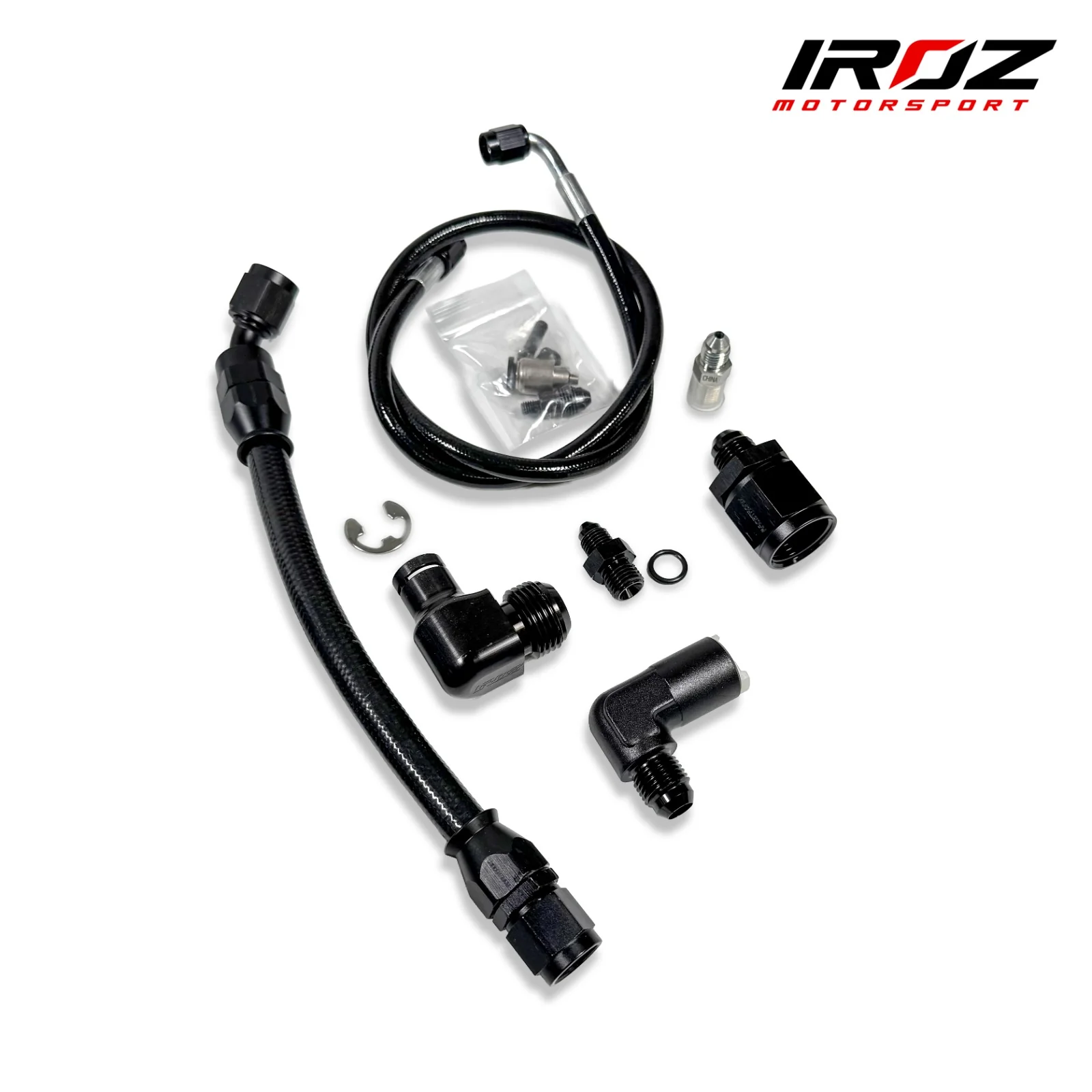

- Vacuum Reference Line Kit for Adjustable FPR
- Required Fittings / Adapters
- Required Wiring

Installation Instructions

Notes:

Recommended Maximum Fuel Pressure:
9 BAR

For those NOT using Boost Reference to the regulator:
The reference port is left open to atmosphere. (7.5 BAR Static Pressure Recommended, Adjust Accordingly)

For those using Boost Reference to the regulator:
Users with the IROZ Motorsport V4 Intake Manifold Plenum will be able to use the available vacuum / boost block for FPR reference. (5.5 BAR Base Pressure Recommended)

Users with the IROZ Motorsport V2 & V3 Intake Manifold Plenum will be able to tee into the available vacuum / boost port for FPR reference. (5.5 BAR Base Pressure Recommended)

Users with the OEM Intake Manifold Plenum will need to use a available port on the IROZ Motorsport Boost Tap Spacer (Not Included) for FPR reference. (5.5 BAR Base Pressure Recommended)
